• GVWR, 9990 lbs. (4531 kg)
• Push Button Start
• Drive System, AWD (Electronic AWD), 2 motors (1 front and 1 rear electric drive unit) 300 hp (225 kW) and 390 lb-ft (530 Nm) of torque

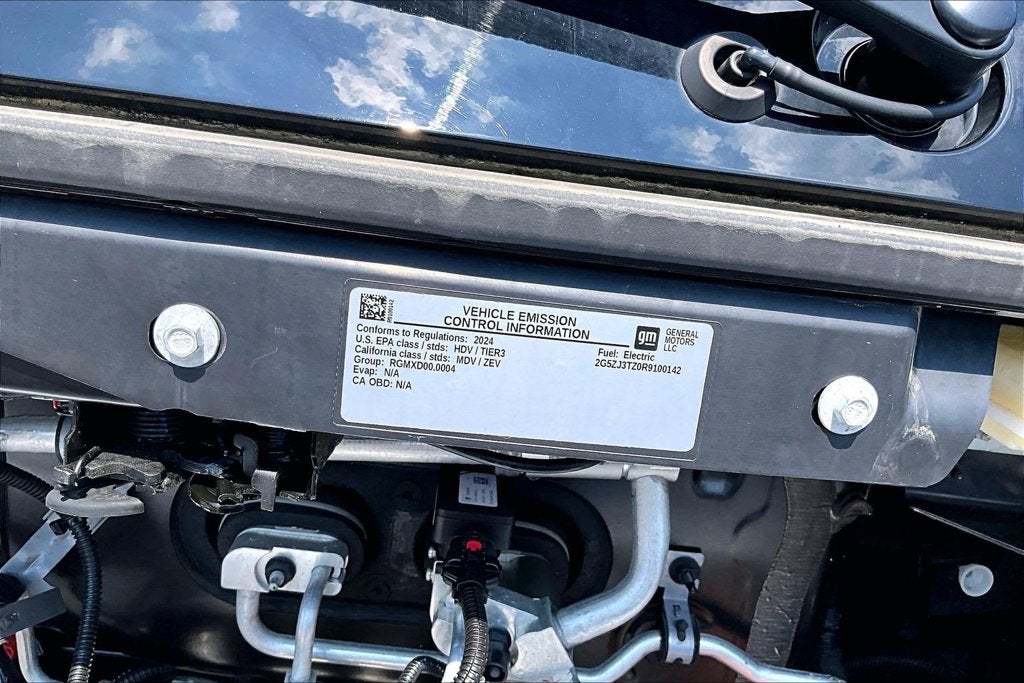

• Emission system zero emission vehicle (ZEV)
• Final drive ratio, 13.26:1 (X80F) front axle and 11.63:1 (X77R) rear axle
• Chassis drive line, All-Wheel Drive (AWD) electric front
• Battery Pack, Standard Range (GM-estimated city/highway combined range up-to 178 miles) (Not available to order at this time, (ETJ) Max Range Battery Pack is required.)
• Battery, 12-volt with rundown protection, 800 cold-cranking amps with 80 amp-hour rating
• Charging module, 11.5 kW high-voltage
• DC fast charging, 400 volt, up to 120 kW
• Steering, power, electric-assisted
• Brake, electronic parking
• Brakes, 17" front and rear sliding caliper disc with 4-wheel antilock braking
• Regenerative braking
• Drive unit, rear, secondary one motor, integrated inverter, no park
• Drive unit, front, primary one motor, integrated inverter, open differential, park system
• One Pedal Driving
• Auto Vehicle Hold

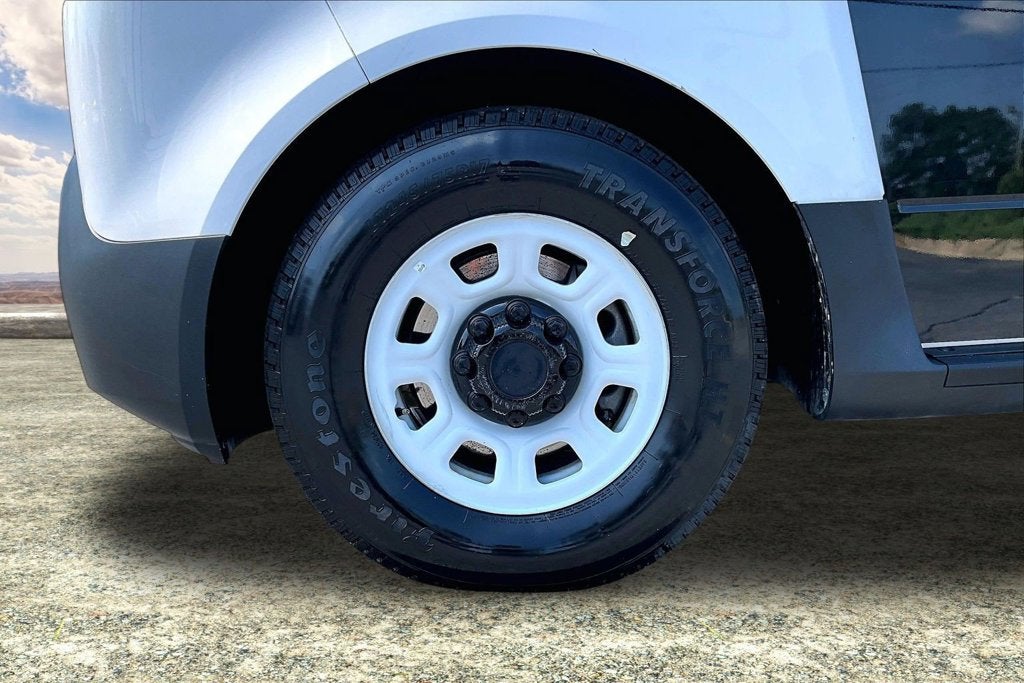

• Wheels, 17" (43.2 cm) steel, White-painted
• Tires, LT245/75R17E all-season, blackwall
• Wheel, 17" (43.2 cm) steel spare, White-painted
• Tire, spare LT245/75R17E all-season, blackwall (Includes (RUF) 17" White-painted steel spare wheel. Includes (NZ4) 17" Black-painted spare wheel when (PYN) 17" Black-painted steel wheels is ordered.)
• Rear hold bars, integrated

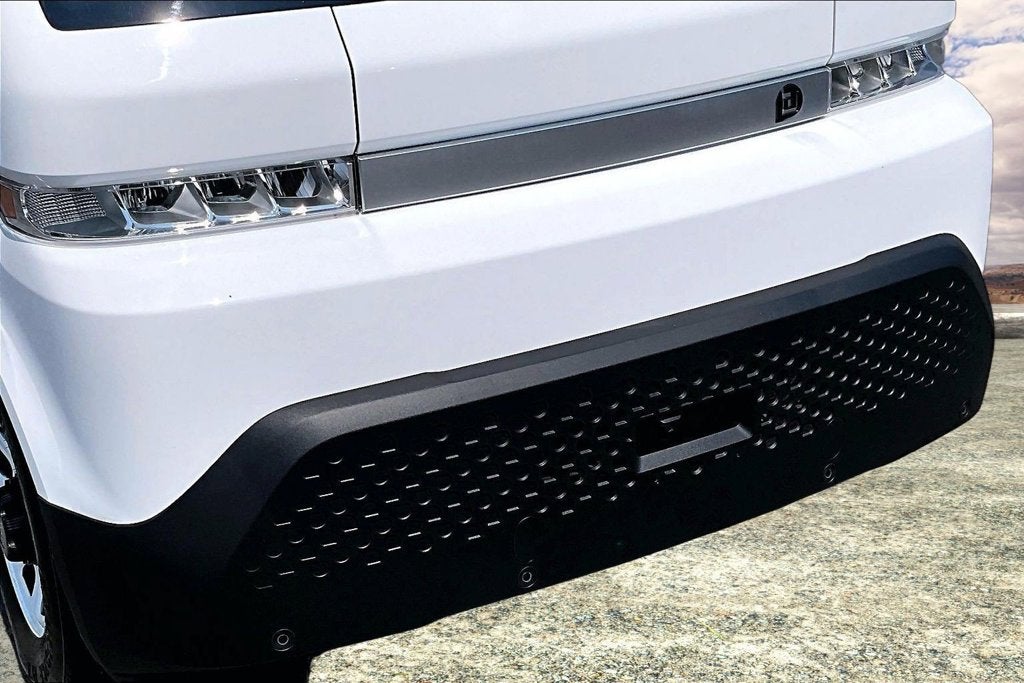

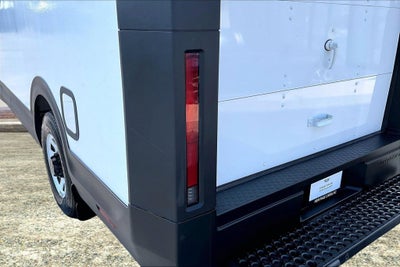

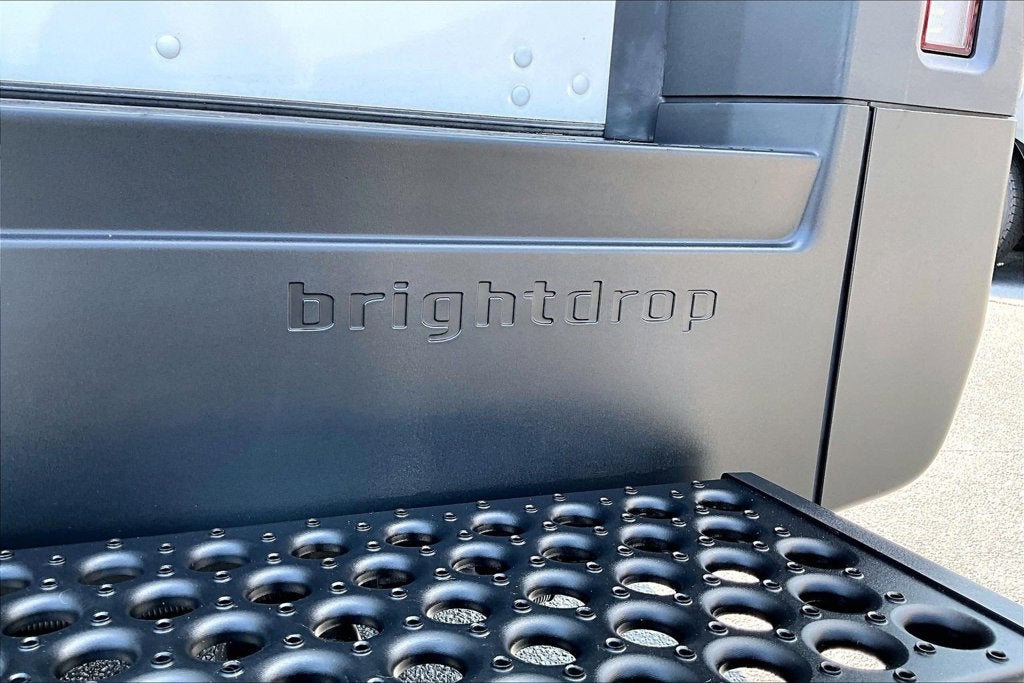

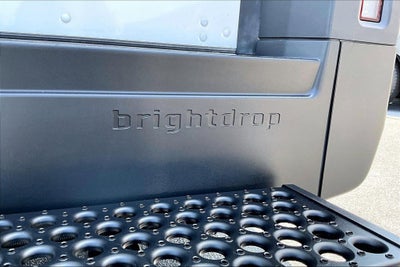

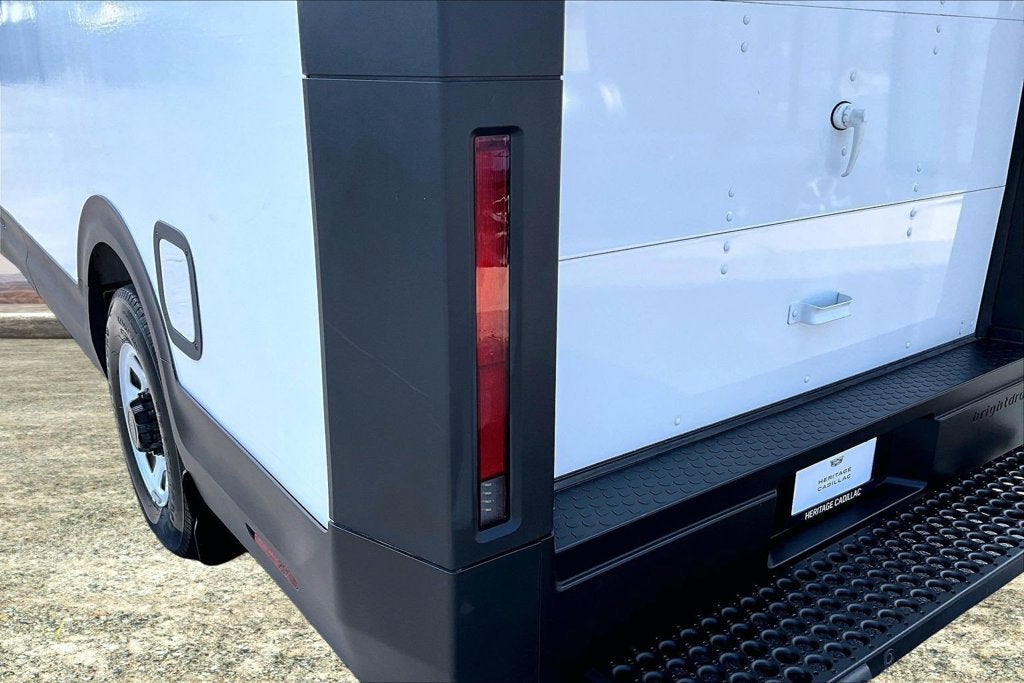

• Rear step bumper
• Headlamp control, automatic on and off

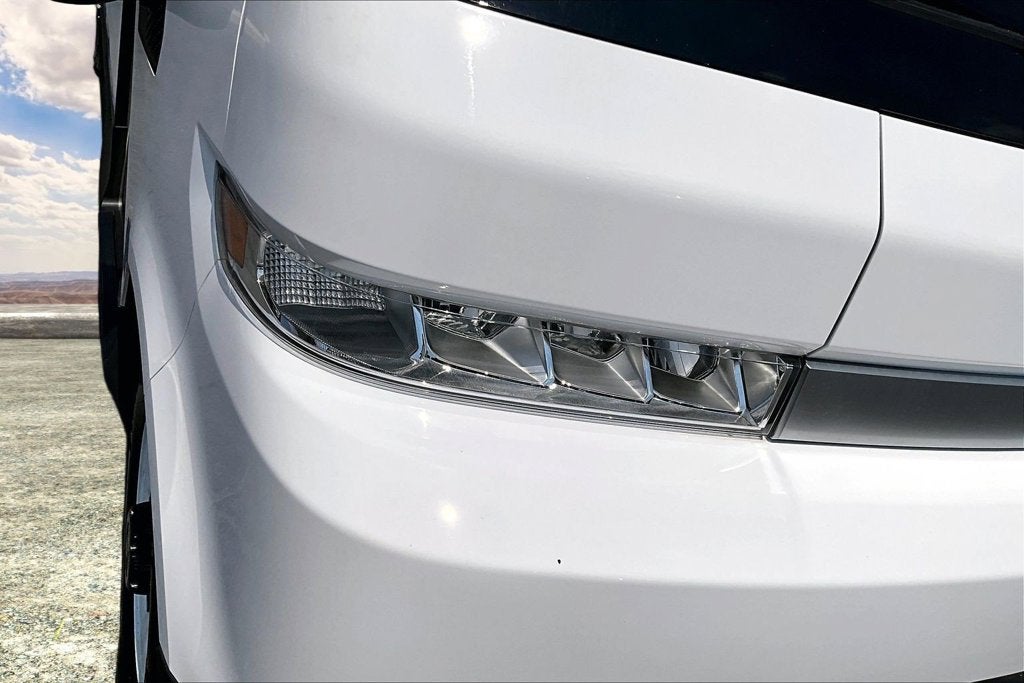

• Headlamps, LED with daytime running lamps and turn signals
• IntelliBeam, auto high beam
• Lamp, front, Smoked Amber roof marker, LED
• Lamp, rear, Red, roof marker, LED
• Taillamps, LED
• Charge port lighting with charge indicator
• Mirrors, outside, heated, power-adjustable, manual-folding
• Wipers, front intermittent, Rainsense
• Washer system, washer level sensor
• License plate front mounting package

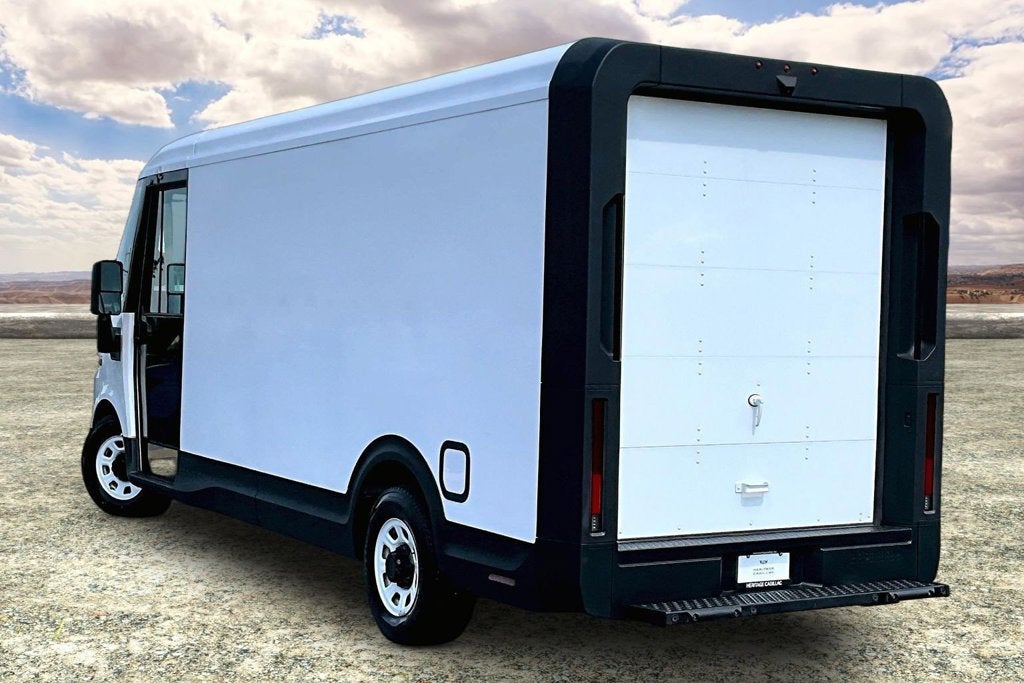

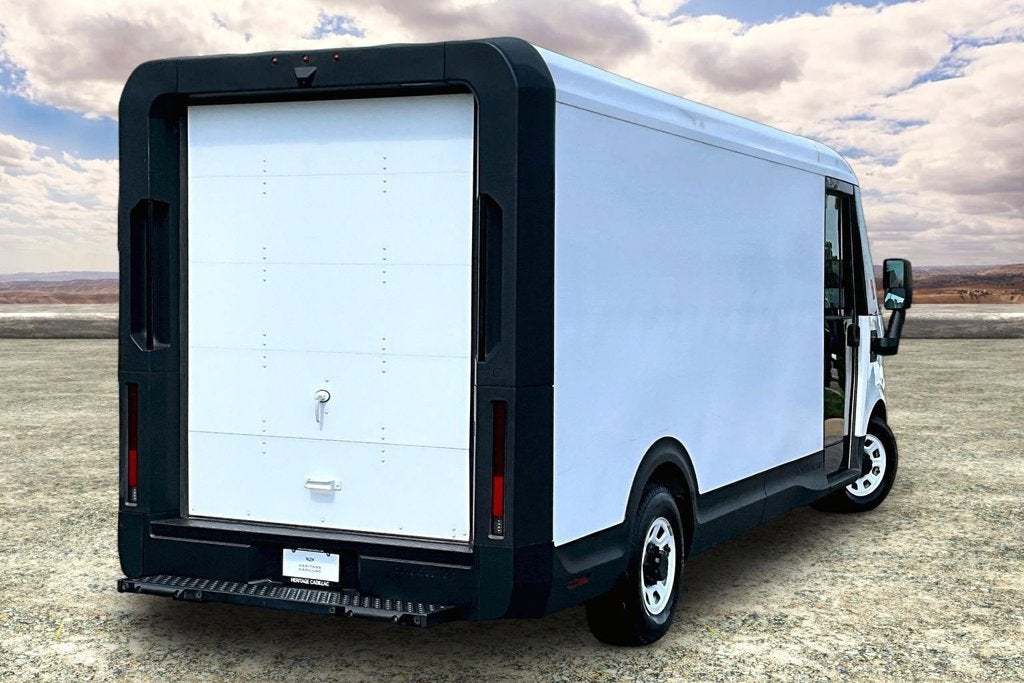

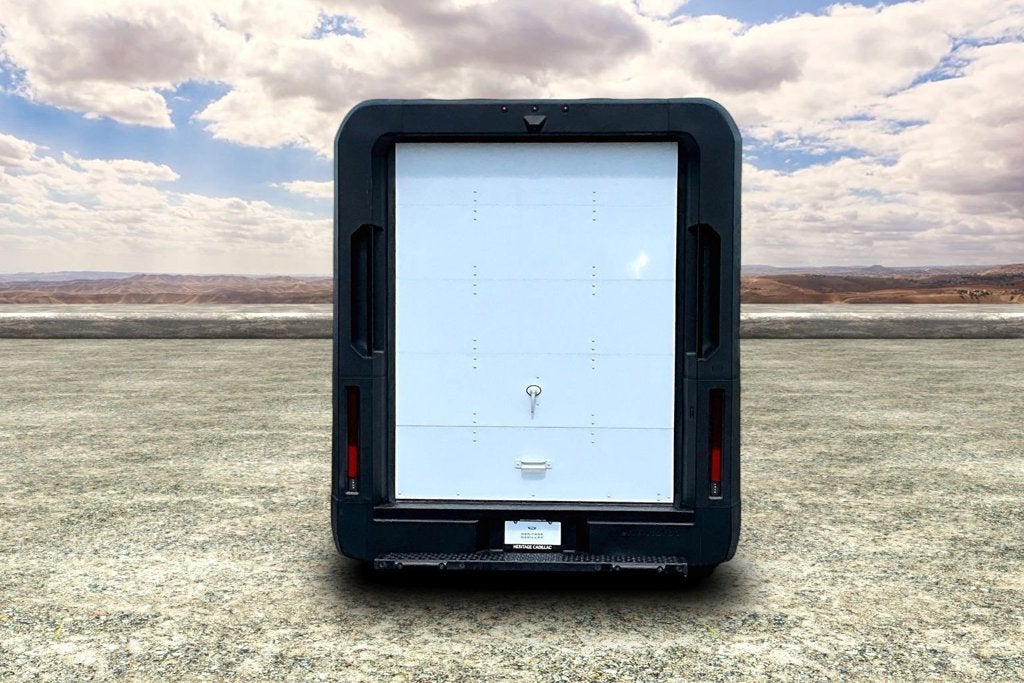

• Cargo door, roll-up, rear

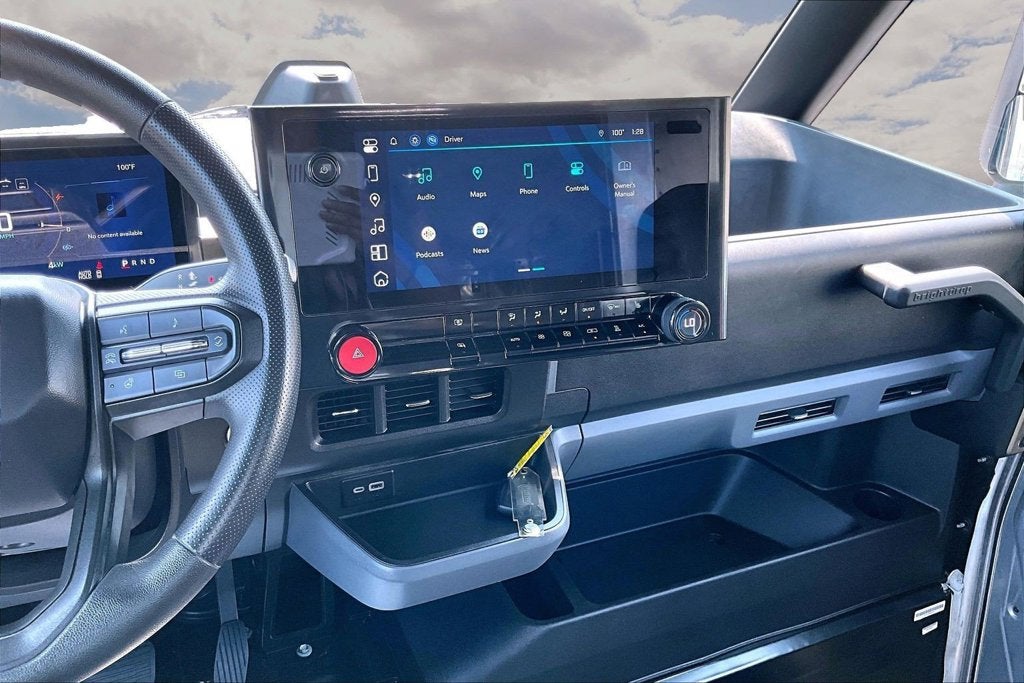

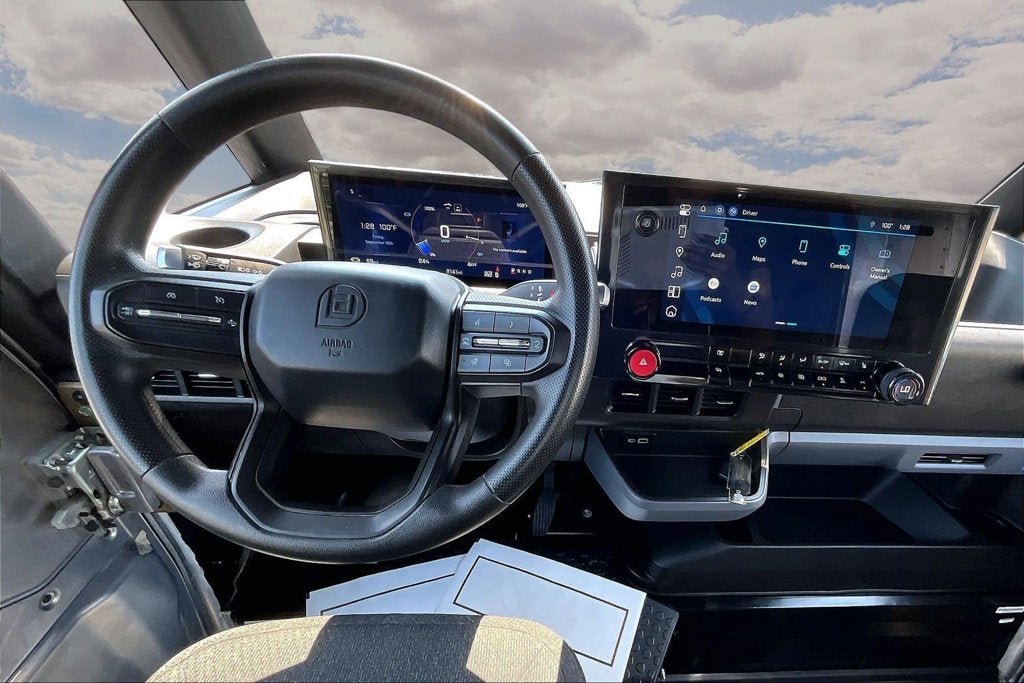

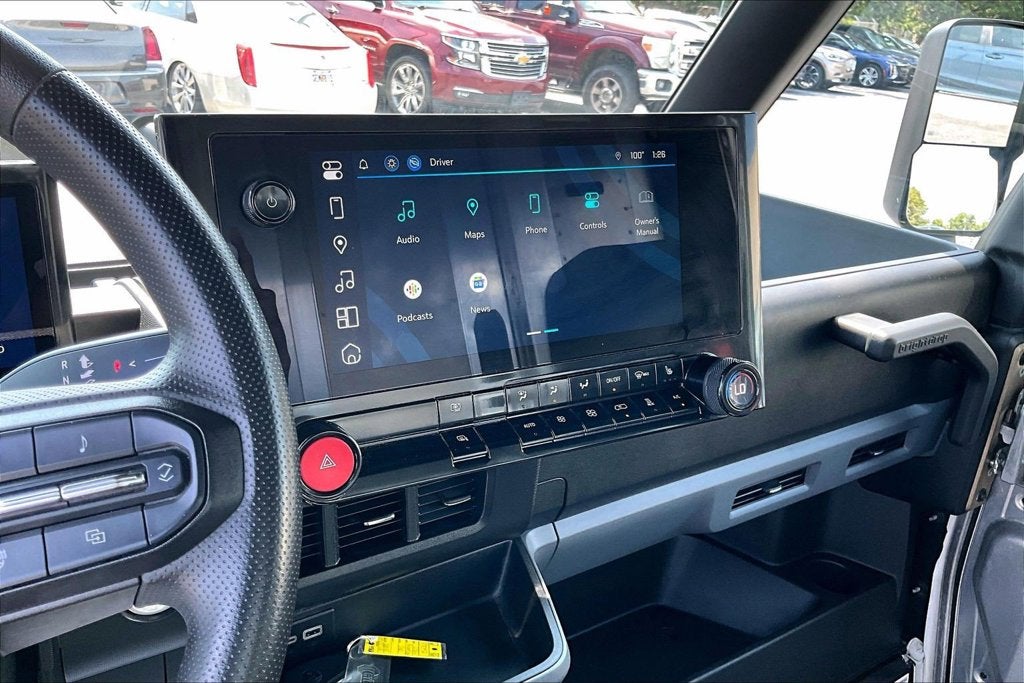

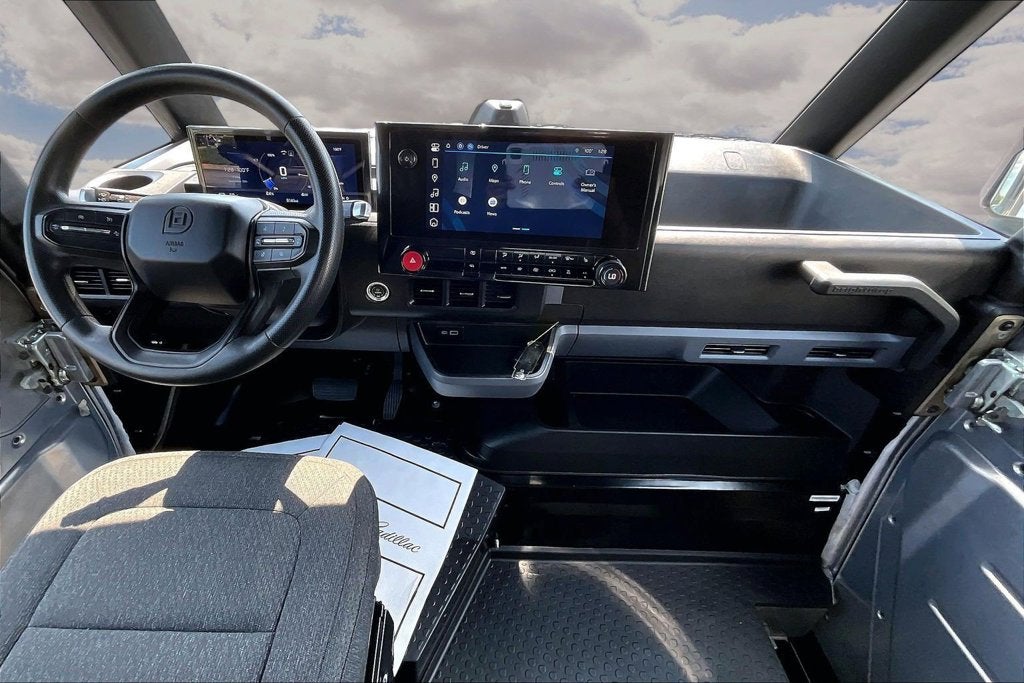

• 11.3" diagonal advanced color LCD display with Google Built-In compatibility including navigation capability, connected apps, Natural Voice Recognition and Phone Integration for Wireless Apple CarPlay/Wireless Android Auto for compatible phones
• Audio system feature, 2-speaker system
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

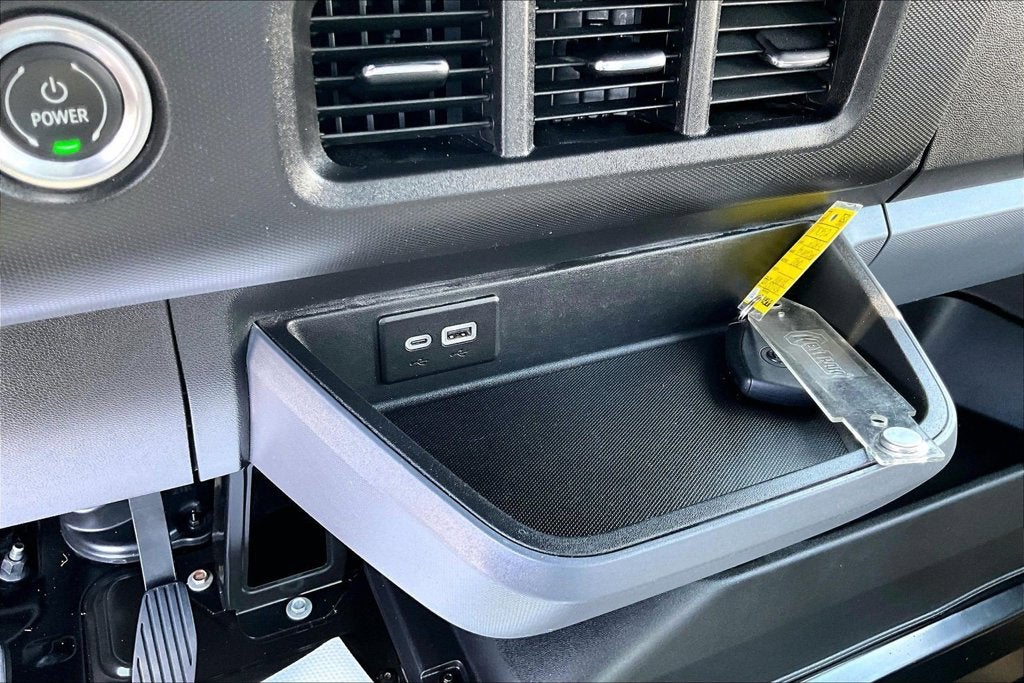

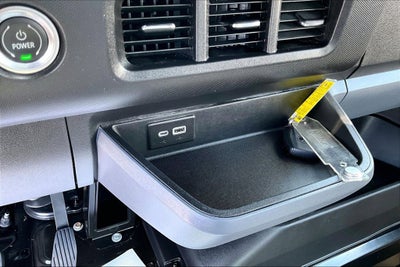

• USB ports, 2, one type-A and one type-C located within the instrument panel

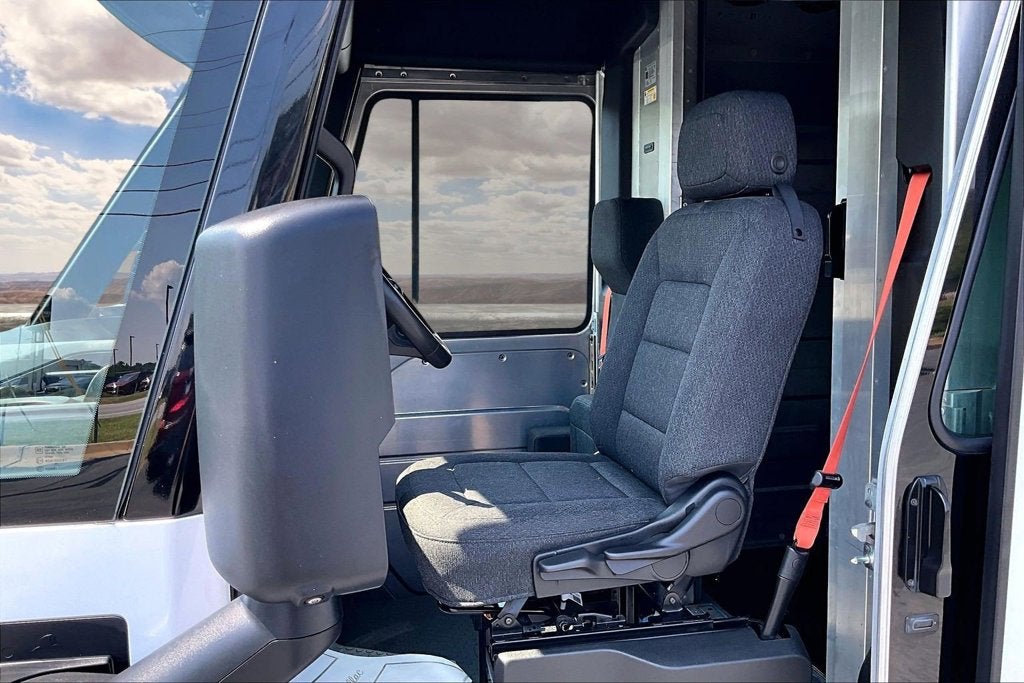

• Seat, front bucket, driver with 2-way headrest
• Seat trim, cloth
• Seat adjuster, driver 6-way manual
• Cup holders, 2 on driver side, 1 on curbside
• Floor covering, front cabin area, all-weather durable
• Steering column, manual tilt and telescoping
• Steering wheel, urethane

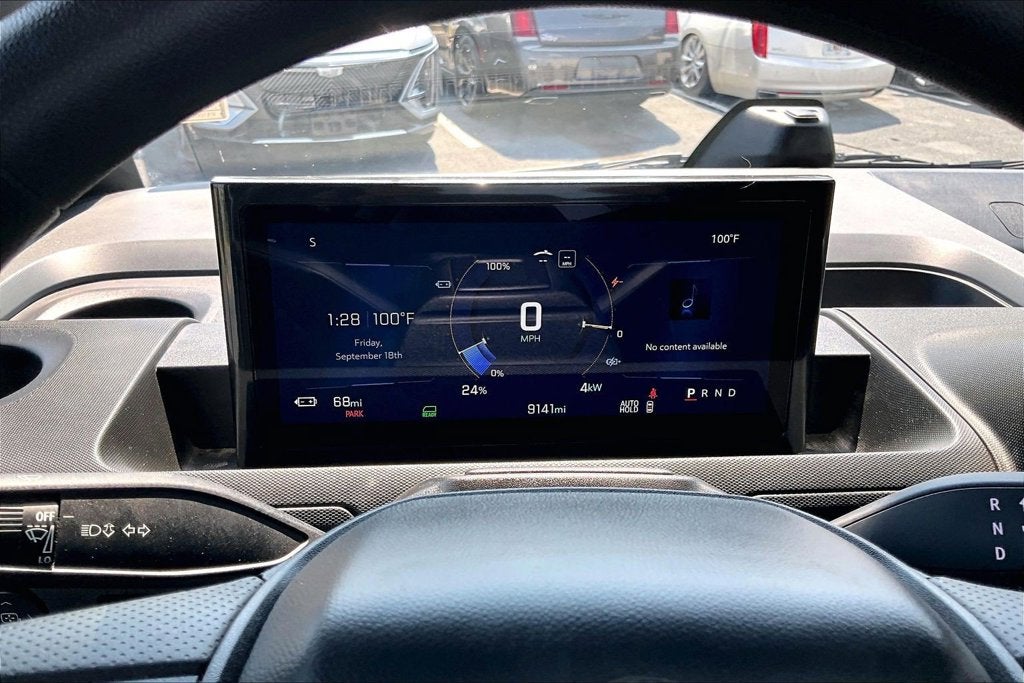

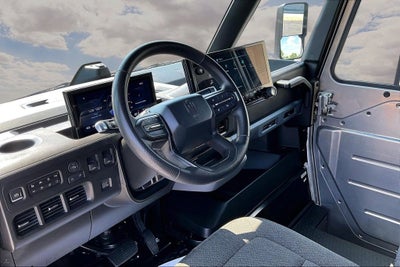

• Driver Information Center, 11" diagonal display
• Vehicle health management provides advanced warning of vehicle issues
• Compass, digital
• Outside temperature display located in the infotainment display
• Delivery Mode a feature that automates repetitive tasks for the driver to speed package delivery. Features include turning on cabin lighting, unlocking doors, automating bulkhead door and curbside doors (if equipped with auto-open or power package) and sounding the horn when vehicle is shifted out of park.
• Fleet Driver a configurable feature in the BrightDrop software platform that lets you activate customizable vehicle settings to help encourage safe driving behavior. It can limit certain available vehicle features and will prevent certain safety systems from being turned off.
• Windows, remote express-down
• Door locks, power

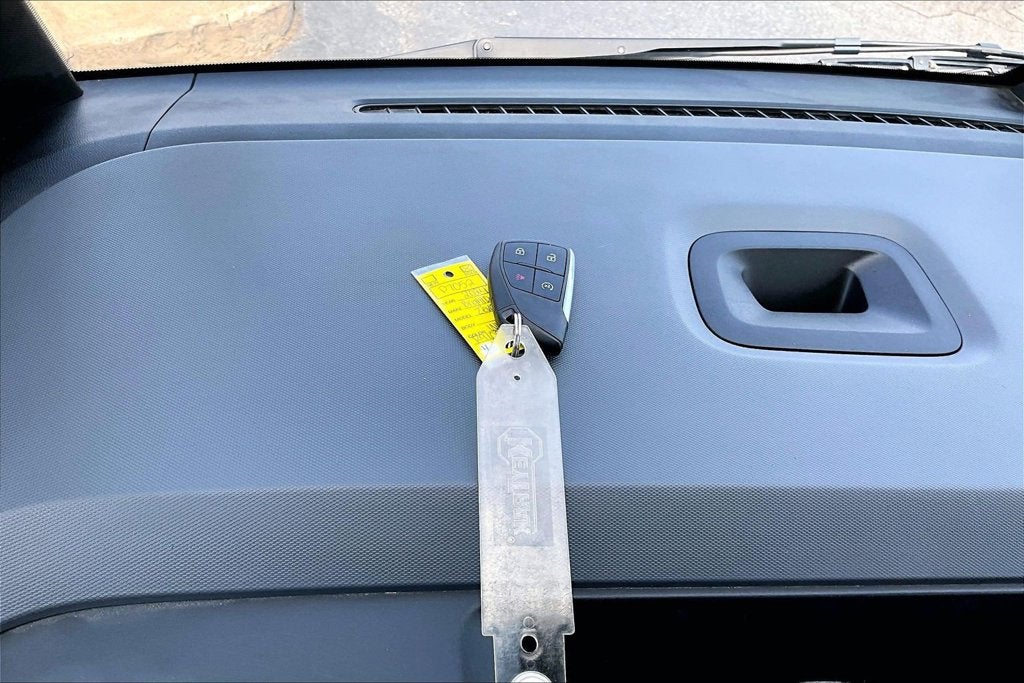

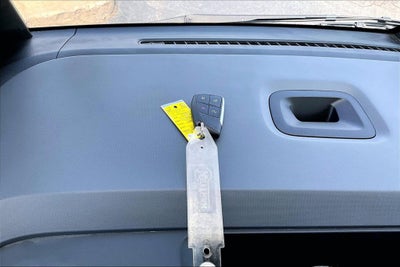

• Remote Keyless Entry
• Remote vehicle starter system
• Adaptive Cruise Control (Included with (AS2) Active Safety Package 2.)
• Remote panic alarm
• Theft deterrent system, unauthorized entry
• Theft deterrent sensor, cargo area interior movement
• Theft deterrent sensor, vehicle inclination
• Power outlet, auxiliary, 12-volt
• Air conditioning, automatic climate control
• Sensor, humidity and windshield temperature

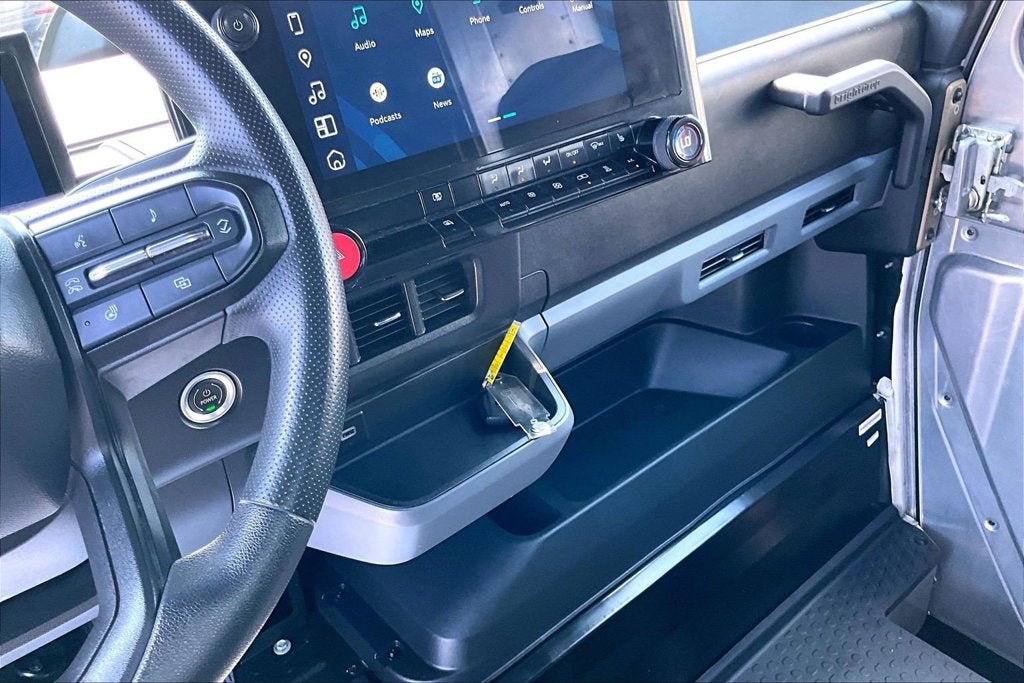

• Storage tray, instrument panel
• Storage bins upper instrument panel on driver side, upper instrument panel on curbside, lower floor area on curbside

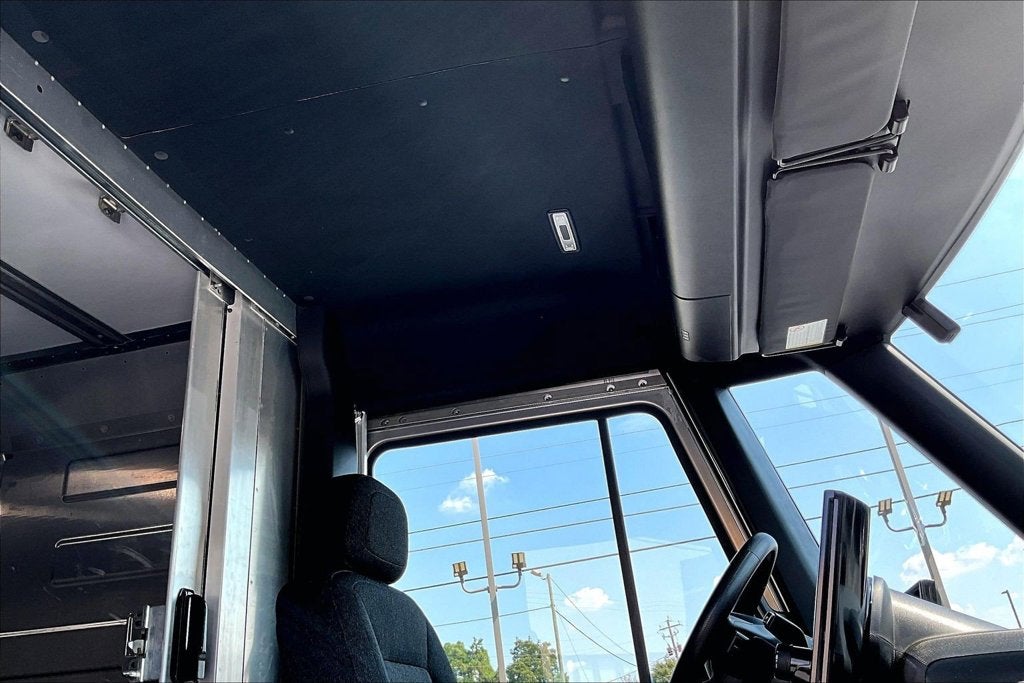

• Storage, overhead console
• LED lighting, 2, motion-sensing, cargo area
• Seat belt color, Black
• Bulkhead door, manual open/close
• Cargo tie downs 8, fixed, rated at 1,000 lbs (453.59 kg) each

• Blind Zone Steering Assist (Included with (AS1) Active Safety Package 1.)
• Front Pedestrian Braking
• Rear Cross Traffic Braking (Included with (AS1) Active Safety Package 1.)
• Enhanced Automatic Emergency Braking (Included with (AS2) Active Safety Package 2.)
• Reverse Automatic Braking (Included with (AS2) Active Safety Package 2.)
• StabiliTrak, stability control system with Traction Control and Hill Start Assist
• Pedestrian safety signal automated external sound generator at low speeds alerts pedestrians of vehicle presence in the front and rear of the vehicle
• Airbags, frontal, roof-rail and side-impact for driver
• OnStar connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Google Automotive Services capable
• Front and Rear Park Assist

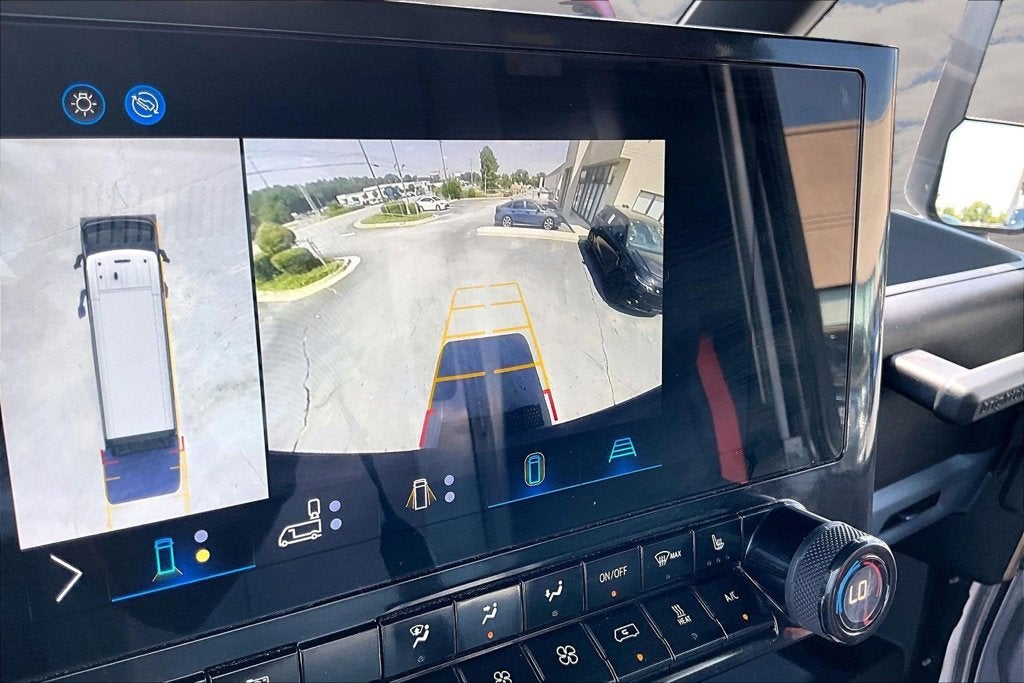

• HD Surround Vision (Included with (AS2) Active Safety Package 2.)
• Forward Collision Alert
• Lane Keep Assist
• Following Distance Indicator (Feature may have late availability.)
• Speed Limit Assist, automatic (Requires applicable active data plan for full functionality. Included with (AS2) Active Safety Package 2.)
• Traffic Sign Recognition (Requires applicable active data plan for full functionality. Included with (AS2) Active Safety Package 2.)
• LED Reflective Windshield Collision Alert
• Step Bumper View
• Safety Alert Seat (Included with (AS1) Active Safety Package 1.)
• Seat belt, driver, 3-point
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off through the vehicle infotainment screen
• Seat belt pretensioner, driver
• Tire Pressure Monitor System auto learn, includes Tire Fill Alert and Tire Leak Detection (does not apply to spare tire, if equipped)
• Horn, dual-note
• 8 Years of OnStar Remote Access. The OnStar Remote Access Plan gives you simplified remote control of your properly equipped vehicle. See dealer for details. (OnStar Remote Access Plan does not include emergency or security services. Fleet customers will get Fleet Remote Access through OnStar Vehicle Insights. See onstar.com for details and limitations. Available on select Apple and Android devices. Service availability, features and functionality vary by vehicle, device, and the plan you are enrolled in. Terms apply. Device data connection required.)

ENGINE NONE

• (STD)

• Navigation System
• Commercial Equipment Pkg w/White Exterior (DISC)
• Exterior Light Package (DISC)
• Heat Package (DISC)
• Preferred Equipment Group EJY
• 2 Speakers
• 2-Speaker Audio System Feature
• AM/FM radio
• Radio: 11.3" Diagonal Advanced Color LCD Display
• Air Conditioning
• Automatic temperature control
• 2 110V Power Outlets
• Power steering
• Power windows
• Remote keyless entry
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Emergency communication system: OnStar connected services capable
• Front anti-roll bar
• Front wheel independent suspension
• Key System w/2 Additional Key Fobs
• Key System w/2 Additional Key Fobs (DISC)
• Low tire pressure warning
• Overhead airbag
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Auto High-beam Headlights
• Delay-off headlights
• Fully automatic headlights
• 1.5 kg Fire Extinguisher w/Mount
• 1.5 kg Fire Extinguisher w/Mount (DISC)
• 3-Point Seat Belt For Front Passenger Jump Seat
• Airbags For Front Jump Seat
• First Aid Kit
• Orange Seat Belt Color
• Orange Seat Belt Color (DISC)
• Panic alarm
• Safety Reflector Triangle Kit (Set of 3)
• Safety Reflector Triangle Kit (Set of 3) (DISC)
• Security system
• Speed control
• Max Range Battery Pack
• Heated door mirrors
• Power door mirrors
• Power-Adjustable Outside Heated Mirrors
• Rear Splash Guards
• Rear Splash Guards (DISC)
• Apple CarPlay/Android Auto
• Cloth Seat Trim
• Compass
• Composite Anti-Slip Cargo Area Floor Cover (DISC)
• Composite Anti-Slip Cargo Area Floor Covering
• Exterior Overhead Cargo Door Task Lamp
• Front Bucket Seat w/2-Way Headrest
• Heated Steering Wheel
• Illuminated entry
• Outside temperature display
• Overhead console
• Spare Fuse Kit
• Spare Fuse Kit (DISC)
• Telescoping steering wheel
• Tilt steering wheel
• Upfitter Wiring Provisions
• Upfitter Wiring Provisions (DISC)
• 6-Way Manual Driver Seat Adjuster
• Front Bucket Seats

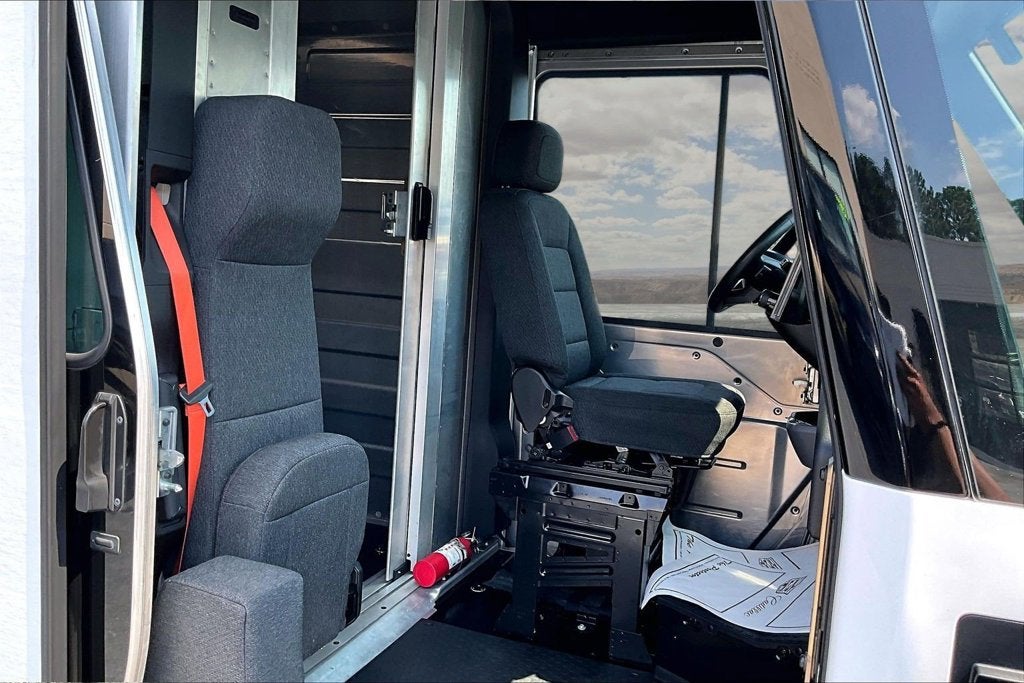

• Front Passenger Jump Seat
• Heated Driver Seat Cushion & Seatback
• Wheels: 17" White-Painted Steel
• Wheels: 17" White-Painted Steel (DISC)
• Rain sensing wipers
• Variably intermittent wipers
• 13.26 Front Axle Ratio & 11.63 Rear Axle Ratio
• ** HEATED SEATS
• ** REARVIEW CAMERA
• ** Bluetooth®, HANDS-FREE

• Vehicle
• Rear Door Type: Roll-Up Cargo Door
• Mileage
• EPA MPG Equivalent - City: - TBD -
• EPA MPG Equivalent - Hwy: - TBD -
• EPA MPG Equivalent - Combined: - TBD -
• Estimated Battery Range (mi): 178
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 800
• Maximum Alternator Watts: N/A
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5291
• Gross Axle Wt Rating - Rear (lbs): 5732
• Curb Weight - Front (lbs): 3945
• Curb Weight - Rear (lbs): 3745
• Gross Vehicle Weight Rating Cap (lbs): 9990
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): - TBD -
• Suspension
• Suspension Type - Front: - TBD -
• Suspension Type - Rear: - TBD -
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: - TBD -
• Axle Ratio (:1) - Rear: - TBD -
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Tires
• Spare Tire Order Code: ZHR
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Doors
• Side Door Type: Sliding
• Exterior Dimensions
• Wheelbase (in): 183.47
• Length, Overall (in): 290
• Width, Max w/o mirrors (in): 86.52
• Height, Overall (in): 108.79
• Overhang, Front (in): 33.99
• Overhang, Rear w/bumper (in): 72.57
• Ground to Top of Load Floor (in): 26.39
• Ground Clearance, Front (in): 7.51
• Ground Clearance, Rear (in): 7.51
• Rear Door Opening Height (in): 73.44
• Rear Door Opening Width (in): 57.57
• Side Door Opening Width (in): 36.67
• Step Up Height - Side (in): 15.49
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 168.9
• Cargo Area Width @ Beltline (in): 83.68
• Cargo Box Width @ Wheelhousings (in): 53.53
• Cargo Box (Area) Height (in): 82
• Cargo Volume (ft³): 614.7
• Interior Dimensions
• Passenger Capacity: 1
• Summary

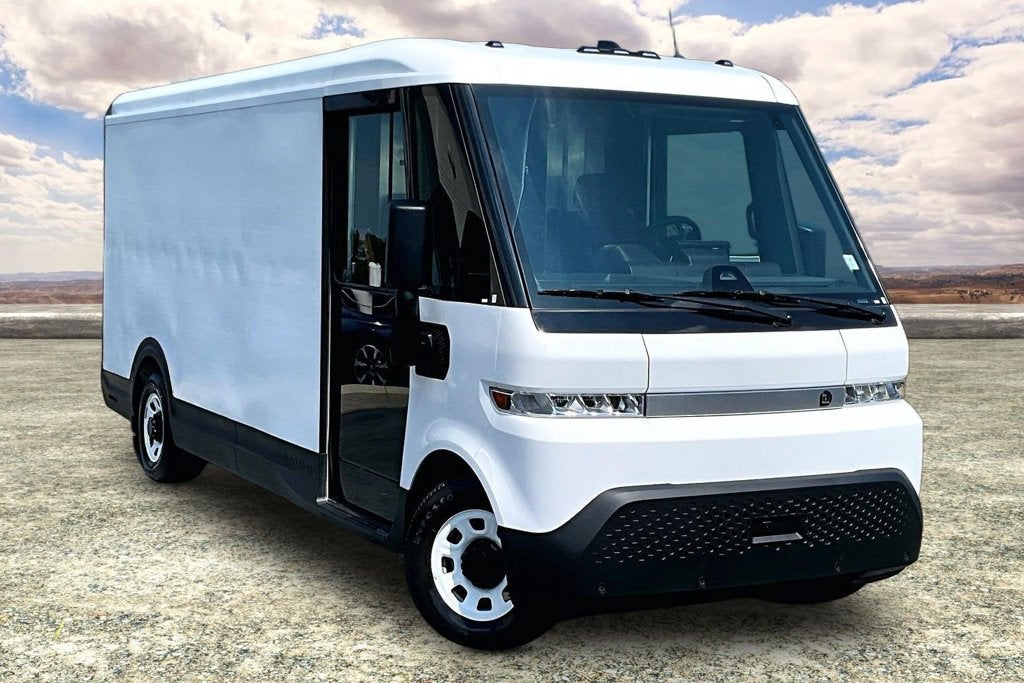

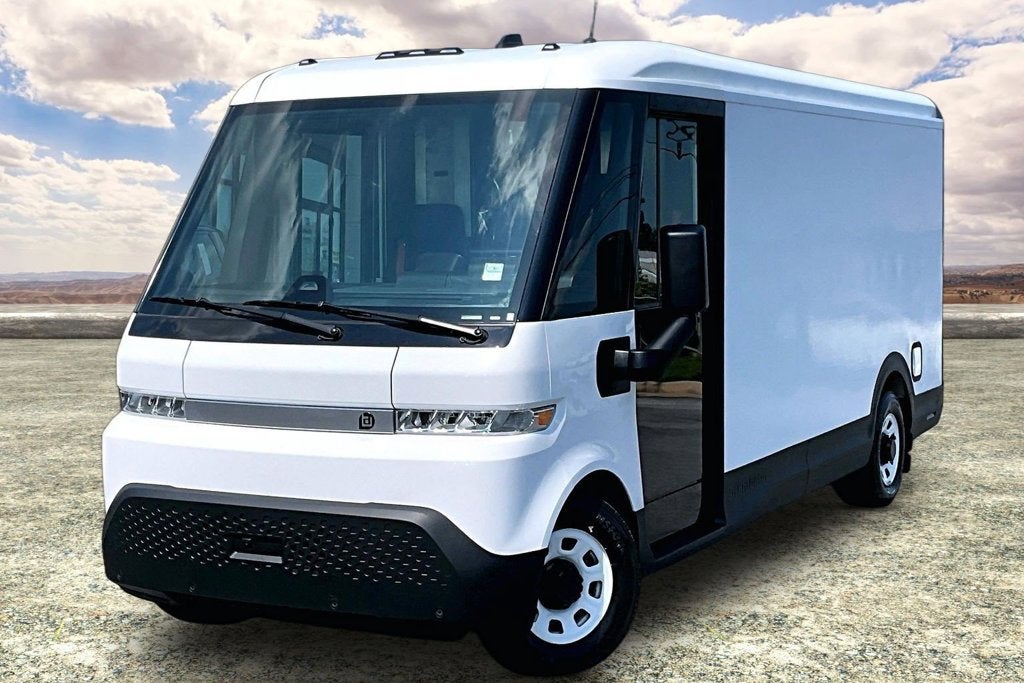

• Vehicle Name: BrightDrop Zevo 600
• Body Style: Cargo Van
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
